Unity中RenderTexture的sRGB问题

在Unity里中,如果使用编辑器(Editor)创建的RenderTexture来渲染相机的某个场景的图片,会发现渲染的场景物体下的真实颜色如果是灰色,在RenderTexture都会是更深的颜色,比如黑色。而从这个renderTexture上所导出的图像,比如附着在某个Texture2D上,后导出的PNG/JPG/bytes都会有更深的颜色。

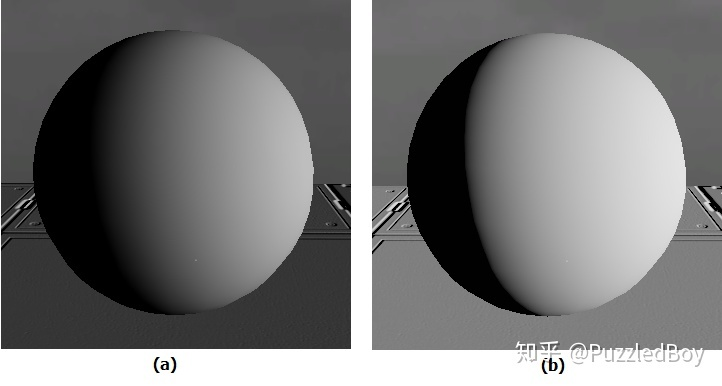

项目里的内容不太方便截图,这里选用了一张同样总结该问题的其他post的图片。

其原因是:在编辑器下的RenderTexture默认是不打开sRGB的,所以其内部存储的颜色是线性的。

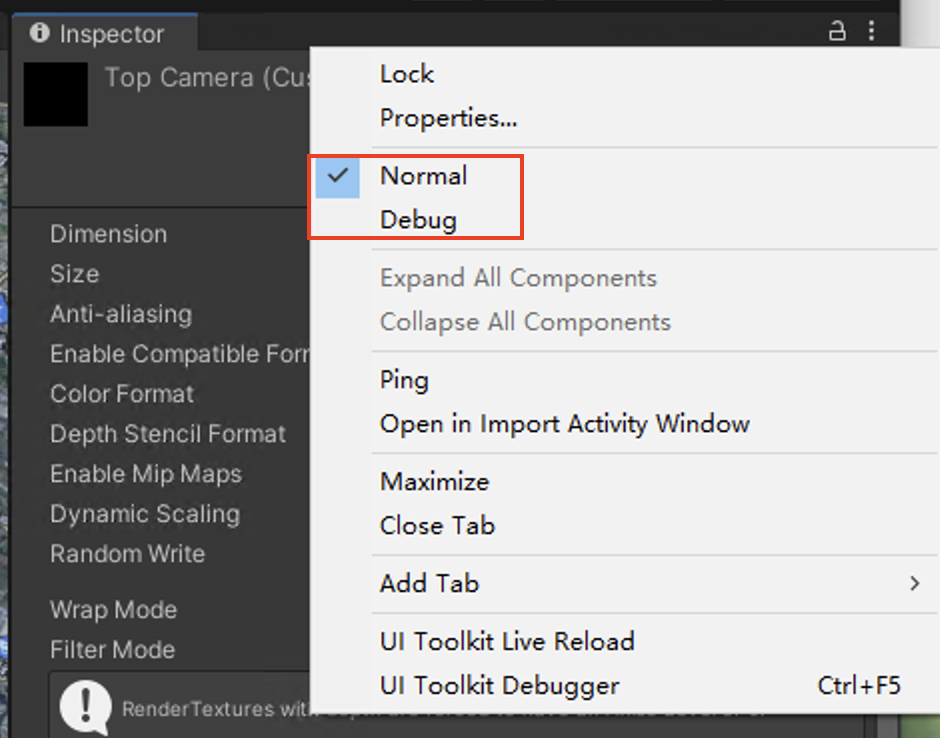

在这里最简单的解决办法是,在使用编辑器(Editor)创建RenderTexture时,点击有inspector右上角的三个点,把normal模式切换为debug模式。

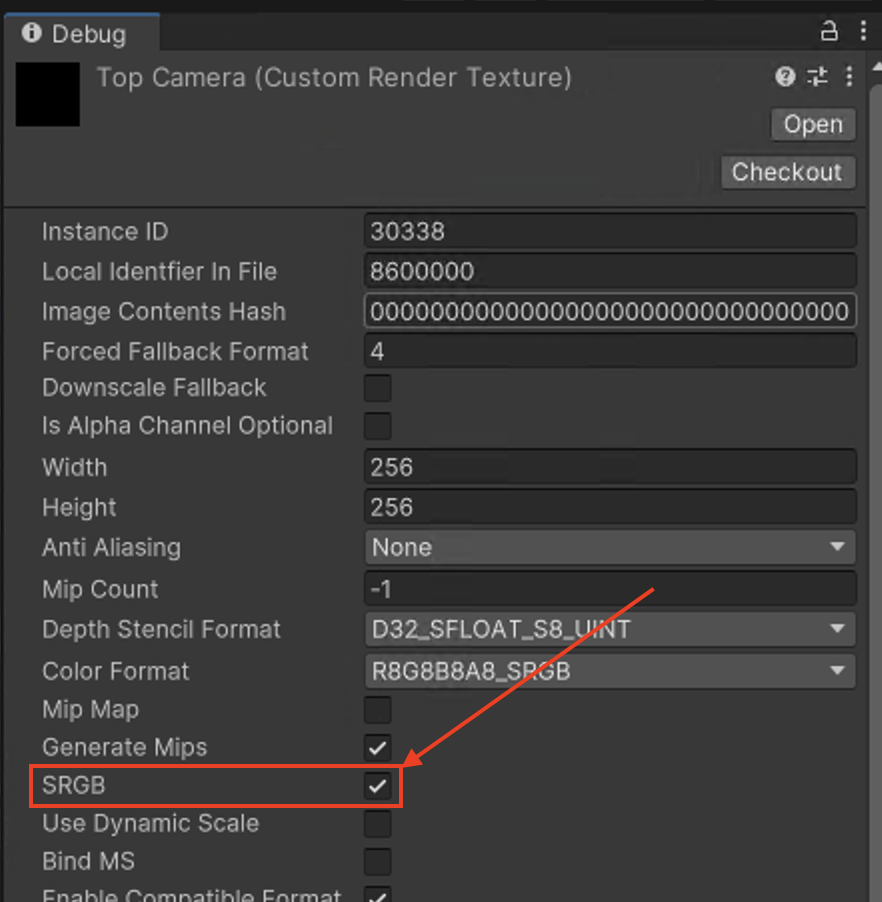

然后在RenderTexture的inspector中,勾选sRGB。

当然,另一种办法是不要在编辑器(Editor)里创建RenderTexture,而是在代码中创建RenderTexture,然后在代码中设置RenderTexture的sRGB属性。

RenderTexture rt = new RenderTexture(width, height, depth, RenderTextureFormat.ARGB32, RenderTextureReadWrite.sRGB);

这样就可以保证RenderTexture的颜色和Unity内部相机看到的颜色一致了!

参考资料:
[1]: https://qiita.com/120byte/items/44df34fd30057f9642b4
[2]: https://discussions.unity.com/t/writting-to-rendertexture-comes-out-darker/637617
[3]: https://blog.csdn.net/lrh3025/article/details/102723090
